Description
Launch :

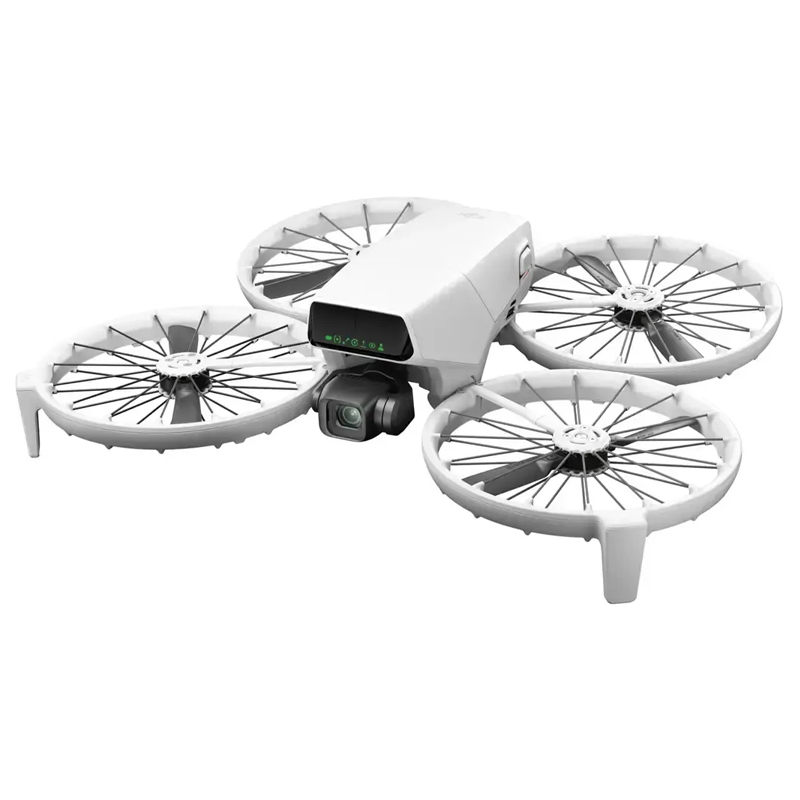

AIRCRAFT
Takeoff Weight : < 249 g
Standard aircraft weight (including the Intelligent Flight Battery and a microSD card). Actual product weight may vary due to differences in batch materials and other factors. Training or examination is not required for flying this product in most countries and regions. Always check local laws and regulations before use. Always check and strictly abide by local laws and regulations before flying.

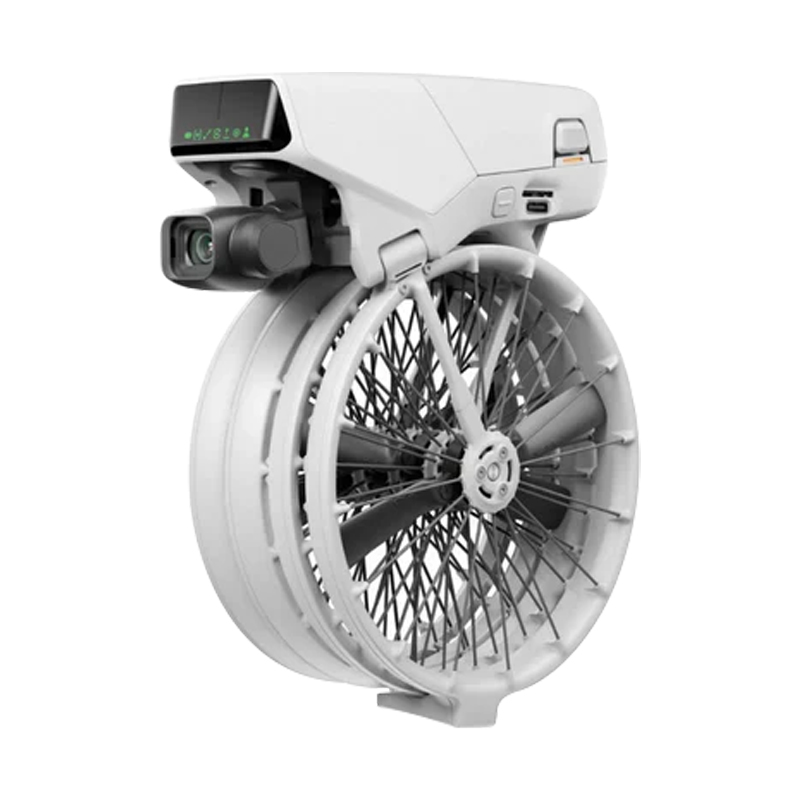

Dimensions : Folded: 136×62×165 mm (L×W×H) | Unfolded: 233×280×79 mm (L×W×H)
Max Ascent Speed : 5 m/s (Sport mode) | 5 m/s (Normal mode) | 2 m/s (Cine mode)
Max Descent Speed : 5 m/s (Sport mode) | 5 m/s (Normal mode) | 1.5 m/s (Cine mode)
Max Horizontal Speed :
At sea level, in windless conditions: 12 m/s* (Sport mode) | 12 m/s (tracking status)
At sea level, with 4 m/s tailwind, while flying in the same direction as the wind: 16 m/s* (Sport mode) | 12 m/s (tracking status)
*Measured in a wind tunnel test environment with the aircraft taking off from an altitude of 0 m and ascending vertically by 1.5 m in Sport mode. Data is for reference only. Always pay attention to reminders on the camera view during your flight.
Max Takeoff Altitude : 3000 m
In a windless environment, a fully charged aircraft can take off from an altitude of 3000 m, ascend vertically by 500 m, and fly in Sport mode until the battery level drops to 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.
Max Flight Time : 31 minutes
Measured when flying forward at a constant speed of 6 m/s in a windless environment 20 m above sea level, in photo mode, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.
Max Hovering Time : 28 minutes
Measured when hovering in a windless environment 20 m above sea level, in photo mode, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.
Max Flight Distance : 14 km
Measured when flying forward at a constant speed of 9 m/s in a windless environment 20 m above sea level, in photo mode, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.
Max Wind Speed Resistance : 10.7 m/s (Level 5)
Operating Temperature : -10° to 40° C (14° to 104° F)
Global Navigation Satellite System : GPS + Galileo + BeiDou
Hovering Accuracy Range :
Vertical: ±0.1 m (with vision positioning) | ±0.5 m (with satellite positioning)
Horizontal: ±0.3 m (with vision positioning) | ±1.5 m (with satellite positioning)
Internal Storage : 2 GB
Class : C0 (EU)
CAMERA
Image Sensor : 1/1.3-inch image sensor
Lens : FOV: 82.1° | Format Equivalent: 24 mm | Aperture: f/1.7 | Focus: 1 m to ∞
ISO Range :
Video: Normal/Slow Motion: 100-6400 (Normal) | 100-1600 (D-Log M)
Photo: 12MP Photo: 100-6400 | 48MP Photo: 100-3200
Shutter Speed : 12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure) | 48MP Photo: 1/8000-2 s
Max Image Size : 48MP Photo | 8064×6048
Still Photography Modes :
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames Automatic Exposure Bracketing (AEB): | 12 MP, 3/5/7 frames at 2/3 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s
Photo Format : JPEG DNG/RAW
Video Resolution : 4K: 3840×2160@24/25/30/48/50/60/100fps | FHD: 1920×1080@24/25/30/48/50/60/100fps | 2.7K Vertical Shooting: 1512×2688@24/25/30fps | FHD Vertical Shooting: 1080×1920@24/25/30fps
Video Format : MP4
Max Video Bitrate : 150Mbps
Supported File System : exFAT
Color Mode : Normal | D-Log M
Digital Zoom : 4K: 3x | FHD: 4x | 2.7K Vertical Shooting: 3x | FHD Vertical Shooting: 4x | 12 MP Photo: 3x
GIMBAL
Stabilization : 3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range : Tilt Axis: -130° to +63° | Roll Axis: -47° to +47° | Pan: -30° to +30°
Controllable Range : Tilt Axis: -90° to +35°
Max Control Speed (tilt) : 100°/s
Angular Vibration Range : ±0.01°
SENSING
Sensing Type : Downward: one visual sensor and an infrared sensor, Forward: 3D Infrared Sensing System
Forward : 3D Infrared Sensing System | Measurement Range: 0.3-8 m (reflectivity > 10%) | FOV: Horizontal 60°, Vertical 60°
Downward : Measurement Range: 0.3-8 m (reflectivity > 10%) | Precise Hovering Range: 0.5-10 m | FOV: Horizontal 60°, Vertical 60°
Operating Environment : Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (such as cement pavement), and adequate lighting (lux > 15)
VIDEO TRANSMISSION
Video Transmission System : O4
Live View Quality : Remote Controller: Up to 1080p/60fps
Operating Frequency : 2.4000-2.4835 GHz | 5.170-5.250 GHz | 5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP) :
2.4 GHz: <30 dBm (FCC) | <20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <33 dBm (FCC) | <14 dBm (CE) | <30 dBm (SRRC)
Max Transmission Distance (unobstructed, free of interference) : FCC: 13 km | CE: 8 km | SRRC: 8 km | MIC: 8 km
Measured in an open, outdoor environment without interference or obstructions and represents the farthest communication range under each standard. The actual max transmission distance during flight is limited by the drone’s max flight distance. Always pay attention to RTH reminders on the camera view during your flight.
Max Transmission Distance (unobstructed, with interference) :
Strong Interference (urban landscape): Approx. 1-2.5 km
Medium Interference (suburban landscape): Approx. 2.5-7 km
Low Interference (suburb/seaside): Approx. 7-13 km
Measured under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Transmission Distance (obstructed, with interference) :
Low Interference and Obstructed by Buildings: Approx. 0-0.5 km
Low Interference and Obstructed by Trees: Approx. 0.5-2 km
Measured under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Download Speed : O4: DJI RC-N3 Remote Controller: 10 MB/s | DJI RC 2 Remote Controller: 10 MB/s | Wi-Fi 5: 30 MB/s
Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.
Lowest Latency : Approx. 120 ms
Depending on the actual environment and mobile device.
Antenna : 4 antennas (2.4 GHz: 1T2R; 5.2/5.8 GHz: 2T2R)
WI-FI
Protocol : 802.11a/b/g/n/ac
Operating Frequency : 2.4000 GHz-2.4835 GHz | 5.7250 GHz-5.850 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP) :
2.4 GHz: <20 dBm（FCC/CE/SRRC/MIC
5.8 GHz：<20 dBm（FCC/SRRC）| <14 dBm （CE）
Effective Operating Range : 50 m
Measured in an open environment free of interference. Actual transmission distance may vary by the operating environment.
BLUETOOTH
Protocol : Bluetooth 5.0
Operating Frequency : 2.4000-2.4835 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP) : ＜10 dBm
BATTERY
Capacity : 3110 mAh
Weight : Approx. 83.5 g
Nominal Voltage : 7.16 V
Battery Type : Li-ion
Chemical System : LiNiMnCoO2
Energy : 22.3 Wh
Charging Temperature : 5° to 40° C (41° to 104° F)
Charging Time :
When Charging via Aircraft (30W max charging power):
From 0% to 100%: Approx. 70 minutes*
When Using the Battery Charging Hub for Charging One Battery (48W max charging power):
From 0% to 100%: Approx. 45 minutes**
When Using the Battery Charging Hub for Parallel Charging Two Batteries (65W max charging power):
Two batteries from 0% to 100%: Approx. 70 minutes***
* Using the DJI 30W USB-C Charger or a charger that supports the PD protocol with a power output higher than 30 W.
** Using the DJI 65W USB-C Charger or a charger that supports the PD protocol with a power output higher than 48 W.
*** Using the DJI 65W USB-C Charger or a charger that supports the PD protocol with a power output higher than 65 W.
BATTERY CHARGING HUB
Input : 5 V, 4.3 A | 9 V, 4.3 A | 12 V, 4.3 A | 15 V, 4.3 A
Output (power accumulation) : Max 45 W
Output (charging) : 15 V, 2 A | 12 V, 2 A | 9 V, 3 A | 5 V, 3 A
Rated Power : 65 W
Charging Type : Supports Parallel Charging of Two Batteries
Parallel charging requires the DJI 65W Portable Charger or a charger with at least 65W output, 4.3A current at 15V, and PD protocol support, along with a charging cable rated for at least 5A and also supporting PD protocol. Otherwise, batteries will be charged individually.
Compatibility : DJI Flip Intelligent Flight Battery
CHARGER
Recommended Charger : DJI 65W Portable Charger* | USB Power Delivery chargers
* When you charge the battery mounted to the aircraft, the maximum charging power supported is 30 W.
* When you charge the battery inserted into the Parallel Charging Hub, the maximum charging power supported is 65 W.
STORAGE
Recommended microSD Cards :
Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC
Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
APP
Mobile Device App : DJI Fly
Required Operating System : iOS 13.0 or later | Android 7.0 or later

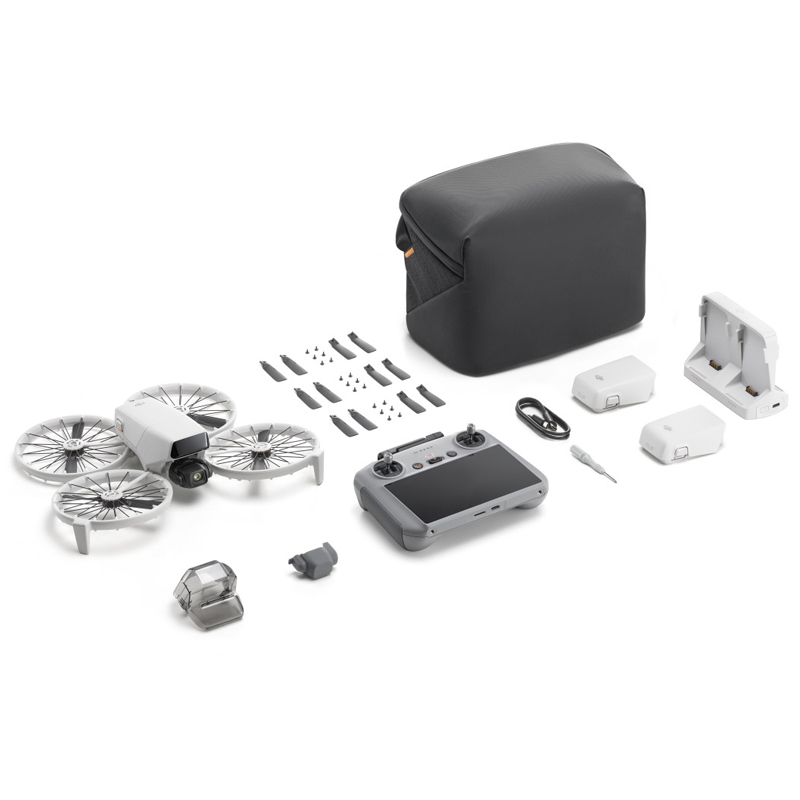

IN THE BOX :
